Flow Chart

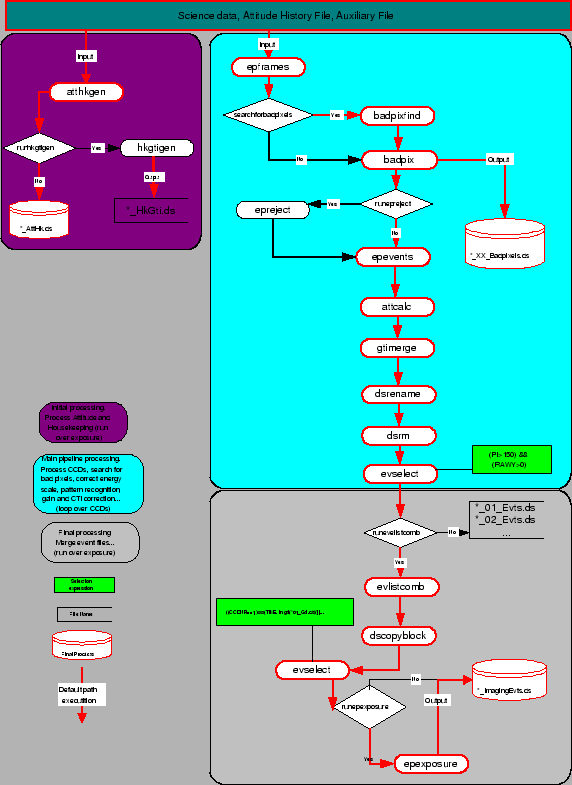

In the figure 5.1 there is a sketch of the pipeline with all the tasks that epproc execute. A default execution of epproc can be easily tracked, just simply following the red arrows.

\epsfig{file=epproc.epsi,width=.8\textwidth}


epproc pipeline.
